Lamella Clarifier

ABOUT THE PRODUCT

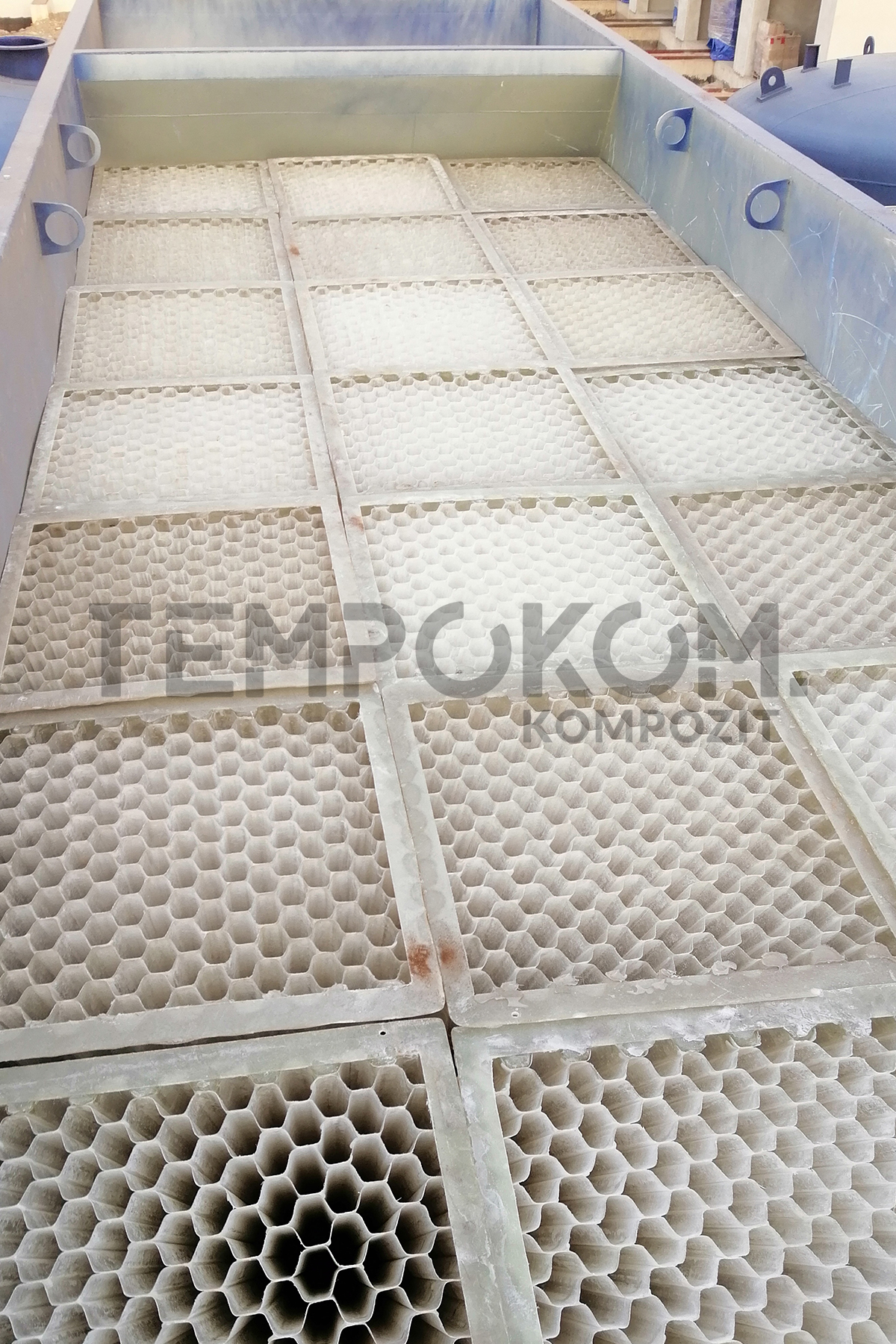

Lamella technology is an effective solution used in water and wastewater treatment systems for sedimentation and flotation processes. By maintaining laminar flow conditions, it improves the quality of the effluent water. Its compact design efficiently utilizes tank volume, saving space. At our company, lamellas are manufactured from corrosion-resistant, lightweight, and long-lasting GRP material.

Lamellas not only reduce investment costs but also increase efficiency. By expanding the effective area, lamella technology achieves high performance. Its greatest advantage is the ability to attain high capacities with a relatively low investment.

TECHNICAL SPECIFICATIONS

• More durable and long-lasting compared to alternatives made from different materials

• Lightweight; a 1000×1000×1000 mm lamella block weighs approximately 45 kg

• 1 m³ of GRP lamella provides 60 m² of surface area

• Surrounded by a GRP frame, preventing flexing

• Plates are laminated together with GRP, contain no steel, and are 100% GRP

• Steel straps placed on top of the blocks facilitate handling

• Can be manufactured with acid-resistant, high-chemical-resistance, drinking water- and food-grade compatible resins upon special request

• No additional stainless steel frame required, as the lamella comes with an integrated GRP frame

ADVANTAGES

• Compact design allows for sedimentation tanks with smaller footprints

• Increases effective settling area up to three times compared to conventional sedimentation tanks

• Requires no maintenance due to the absence of moving parts

• Compact design enables cost-effective solutions with lower investment

• Easy to install

• Homogeneous flow prevents short-circuiting issues

• Operates under laminar flow conditions, preventing sludge washout and ensuring efficient settling

APPLICATION AREAS

• Lamella modules are widely used in drinking water and wastewater treatment systems.

• Lamella systems provide effective solutions in packaged treatment plants, allowing modular treatment solutions for various water and wastewater applications.

• Especially in biological sedimentation systems, lamella modules are increasingly added to enhance sludge settling, resulting in higher capacity and improved efficiency.
